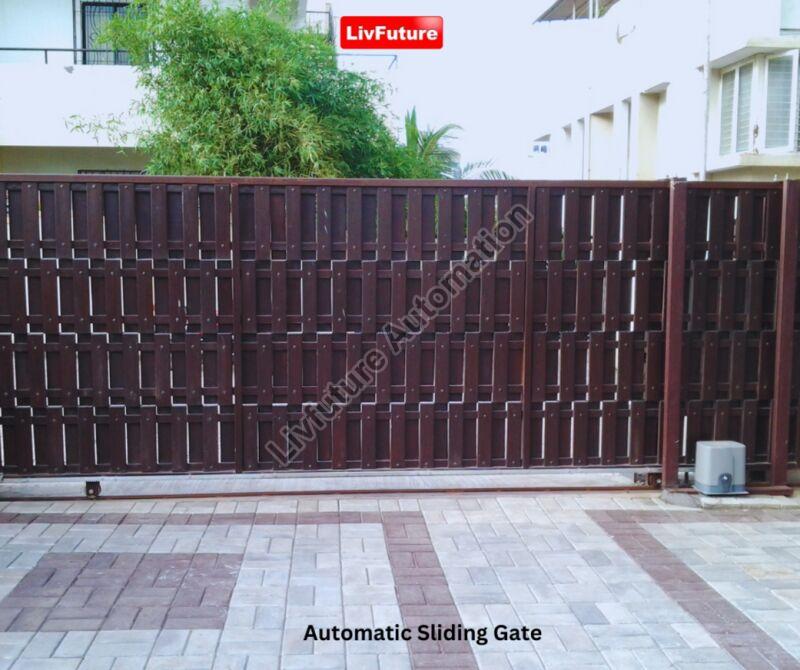

Automation Sliding Gate (Model1030)

Product Description

SD1020 Automatic Sliding Gate Operator is designed for reliable automation of heavy-duty sliding gates used in industrial premises, warehouses, factories, societies and commercial properties.

The motor supports sliding gates up to 2000 kg and can be operated using RF remote control, wall switch, RFID, biometric or other access control systems. It provides smooth gate movement with an opening speed of approximately 1112 meters per minute and a remote operating range of 100200 feet.

The system includes important safety features such as overload protection, overheat protection, photocell safety sensor support and automatic locking system. It also supports auto-closing delay adjustment and manual release during power failure, ensuring safe and convenient operation.

Key Features

Suitable for sliding gates up to 2000 kg

Remote control operating range 100200 feet

Gate opening speed 1112 m/min

Compatible with RF remote, RFID and biometric access systems

Auto-closing delay adjustment

Manual release during power failure

Overload and overheat protection

Photocell safety sensor support

Suitable for industrial, commercial and residential sliding gates

Technical Specifications

Model: SD1020

Power Supply: 220230V AC, 50Hz

Motor Power: 750W

Motor Speed: 42 RPM

Maximum Gate Weight: 2000 kg

Gate Moving Speed: 1112 m/min

Output Torque: 38 Nm

Noise Level: <60 dB

Duty Cycle: S2 15 Minutes

Working Temperature: -20C to +50C

Remote Control Range: 100200 Feet

Kit Includes

Sliding Gate Operator Motor

Galvanized Steel Rack

Infrared Photocell Sensor

Limit Switch

Alarm Lamp

Manual Switch

Approx. Kit Weight: 40 kg

FAQs

What is the maximum gate weight supported?

The SD1020 motor supports sliding gates up to 2000 kg.

What is the remote operating range?

The remote control works from approximately 100200 feet.

Can the motor connect with RFID or biometric systems?

Yes, it supports RFID, biometric and other access control systems.

What happens if there is a power failure?

The gate can be manually opened using the release key.

Does the gate close automatically?

Yes, the auto-closing delay time can be adjusted.

Is it suitable for outdoor installation?

Yes, it is designed for outdoor sliding gate automation.

Can the motor run on inverter or UPS?

Yes, it can operate on inverter or UPS depending on installation setup.

[11:23 am, 16/3/2026] Yash Liv Future: Product Description

SD1030 Automatic Sliding Gate Operator is designed for automation of extra heavy-duty sliding gates used in industrial areas, factories, warehouses, logistics parks and large commercial premises.

The motor supports sliding gates up to 3000 kg and can be operated using RF remote control, wall switch, RFID, biometric or other access control systems. The system provides stable gate movement with a speed of approximately 1112 meters per minute and a remote operating range of 100200 feet.

The operator includes safety features such as overload protection, overheat protection, photocell safety sensor support and automatic locking system. It also supports auto-closing delay adjustment and manual release during power failure, ensuring safe and reliable operation.
