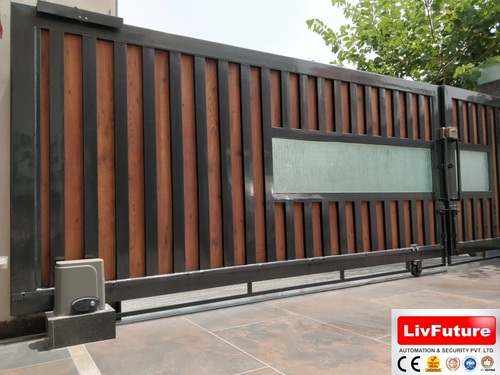

Automatic Sliding Gate Motor 2000Kg

Product Description

Product Description

The SD1020 Automatic Sliding Gate Operator is designed for reliable automation of heavy-duty sliding gates used in industrial premises, warehouses, factories, societies, and commercial properties.

The motor supports sliding gates up to 2000 kg and can be operated using an RF remote control, wall switch, RFID, biometric, or other access control systems. It provides smooth gate movement with an opening speed of approximately 11-12 meters per minute and a remote operating range of 90-100 feet.

The system includes important safety features such as overload protection, overheat protection, photocell safety sensor support, and an automatic locking system. It also supports auto-closing delay adjustment and manual release during power failure, ensuring safe and convenient operation.

Key Features

• Suitable for sliding gates up to 2000 kg
• Remote control operating range: 90-100 feet
• Gate opening speed: 11-12 m/min
• Compatible with RF remote, RFID, and biometric access systems
• Auto-closing delay adjustment
• Manual release during power failure
• Overload and overheat protection
• Photocell safety sensor support
• Suitable for industrial, commercial and residential sliding gates

Technical Specifications

• Model: SD1020
• Power Supply: 380V AC, 50Hz
• Motor Power: 750W
• Motor Speed: 52 RPM
• Maximum Gate Weight: 2000 kg
• Gate Moving Speed: 11-12 m/min
• Output Torque: 45 Nm
• Noise Level: <60 dB
• Duty Cycle: S2 15 Minutes
• Working Temperature: -20C to +50C
• Remote Control Range: 90-100 Feet

Kit Includes

Sliding Gate Operator Motor

Galvanized Steel Rack

Infrared Photocell Sensor

Limit Switch

Alarm Lamp

Manual Switch

Approximate Kit Weight: 40 kg

FAQs

What is the maximum gate weight supported?

The SD1020 motor supports sliding gates up to 2000 kg.

What is the remote operating range?

The remote control works from approximately 90 to 100 feet.

Can the motor connect with RFID or biometric systems?

Yes, it supports RFID, biometric, and other access control systems.

What happens if there is a power failure?

The gate can be manually opened using the release key.

Does the gate close automatically?

Yes, the auto-closing delay time can be adjusted.

Is it suitable for outdoor installation?

Yes, it is designed for outdoor sliding gate automation.

Can the motor run on an inverter or UPS?

Yes, it can operate on an inverter or UPS depending on the installation setup.
