Remote Sliding Gate Operator Model (SD1015)
59999.0 INR/Piece
Product Details:
- Cable Length Standard 3 m
- Speed Range 12 m/min
- Frequency 50 Hz
- Mounting Type Floor Mounted
- Control Type Remote Control
- Phase Single Phase
- Processor Type Microcontroller Based
- Click to View more
X
Remote Sliding Gate Operator Model (SD1015) Price And Quantity
- 59999.0 INR/Piece
- 1 Piece
- Auto-stop and Reverse on Obstruction
- Included
- Powder Coated
- Customized on Request
- Up to 50 meters
- Up to 12 meters
- Horizontal Sliding
- Provided
- Heavy Duty Induction Motor
Remote Sliding Gate Operator Model (SD1015) Product Specifications
- Yes
- Rack and Pinion
- Industrial, Commercial, Residential
- -20C to +55C
- Microcontroller Based
- Automatic
- Mild Steel (MS)
- Corrosion Resistant, Smooth Operation, Sturdy Construction
- Infrared Obstacle Sensor
- IP55
- Wireless
- Up to 1200 kg
- SLIDING
- 220V50 Volt (v)
- Approx. 80 kg
- 12 m/min
- Standard 3 m
- 350 Volt (v)
- Floor Mounted
- 50 Hz
- Single Phase
- Remote Control
- 1 YEAR
- Auto-stop and Reverse on Obstruction
- Included
- Powder Coated
- Customized on Request
- Up to 50 meters
- Up to 12 meters
- Horizontal Sliding
- Provided
- Heavy Duty Induction Motor
Remote Sliding Gate Operator Model (SD1015) Trade Information
- Paypal, Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID)
- 10 Piece Per Month
- 7 Days
- No
- Contact us for information regarding our sample policy
- All India
- ISO
Product Description

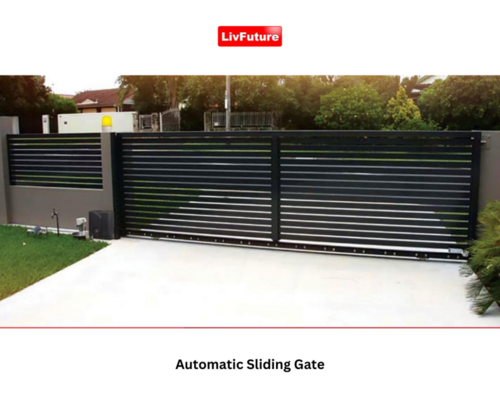

SD1015 Automatic Sliding Gate Operator is designed for smooth and reliable automation of heavy-duty sliding gates used in residential societies, commercial properties, factories and warehouses.
The motor supports gates up to 1500 kg and can be operated using RF remote control, wall switch, RFID, biometric or other access control systems. The system provides stable gate movement with a speed of approximately 1112 meters per minute and a remote operating range of 100200 feet.
The operator includes essential safety features such as overload protection, overheat protection, photocell safety sensor support and automatic locking. It also allows auto-closing delay adjustment and manual release during power failure, ensuring convenient and safe operation.
Key Features
Suitable for sliding gates up to 1500 kg
Remote control operating range 100200 feet
Gate opening speed 1112 m/min
Compatible with RF remote, RFID and biometric systems
Auto-closing delay adjustment
Manual release during power failure
Overload and overheat protection
Photocell safety sensor support
Suitable for residential, commercial and industrial gates
Technical Specifications
Model: SD1015
Power Supply: 220230V AC, 50Hz
Motor Power: 550W
Motor Speed: 42 RPM
Maximum Gate Weight: 1500 kg
Gate Moving Speed: 1112 m/min
Output Torque: 35 Nm
Noise Level: <60 dB
Duty Cycle: S2 15 Minutes
Working Temperature: -20C to +50C
Remote Control Range: 100200 Feet
Kit Includes
Sliding Gate Operator Motor
Galvanized Steel Rack
Infrared Photocell Sensor
Limit Switch
Alarm Lamp
Manual Switch
Approx. Kit Weight: 35 kg
FAQs
What is the maximum gate weight supported?
The SD1015 model supports sliding gates up to 1500 kg.
What is the remote operating range?
The remote control works from approximately 100200 feet.
Can the motor connect with RFID or biometric systems?
Yes, it supports RFID, biometric and other access control systems.
What happens if there is a power failure?
The gate can be manually opened using the release key.
Does the gate close automatically?
Yes, the auto-closing delay time is adjustable.
Is the motor suitable for outdoor installation?
Yes, it is designed for outdoor sliding gate automation.
Can it operate on inverter or UPS?
Yes, the motor can run on inverter or UPS depending on the installation setup.
